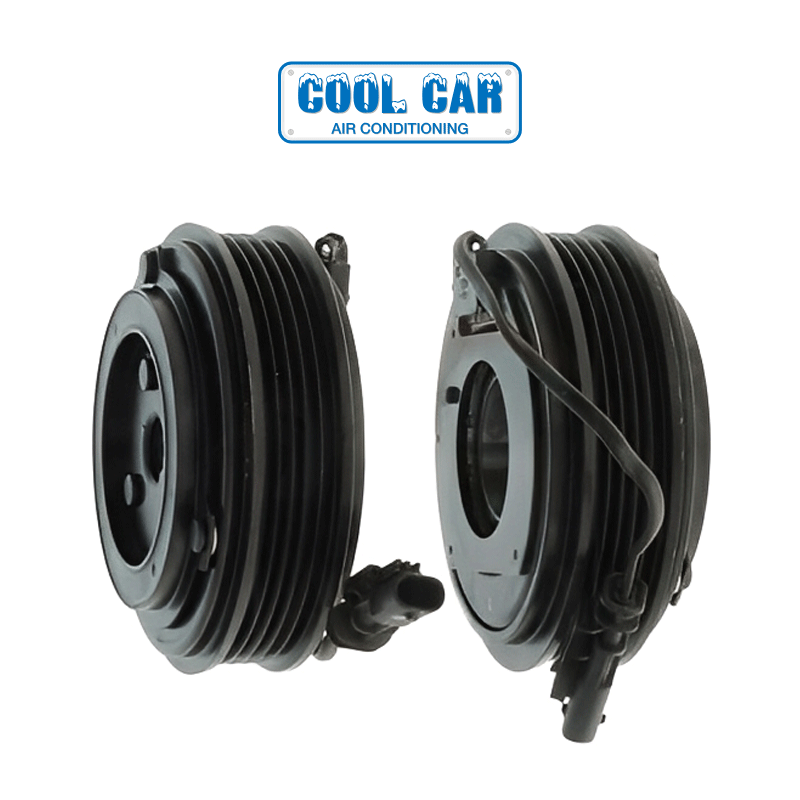

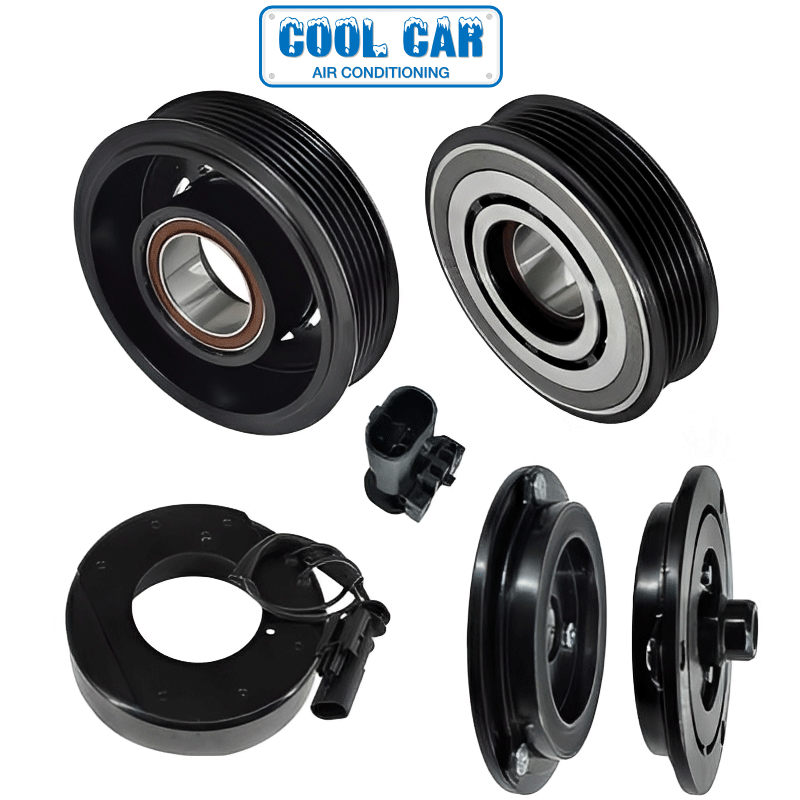

A/C Compressor Clutch Kit Holden Cruze JH 1.6L Petrol 2013-2016

FREE SHIPPING WITHIN AUSTRALIA

Our Price: $170.00 inc.GST

Sourced from reputable manufacturers and wholesalers all over the world. Our compressor clutch kits are designed to replace the original clutch on your A/C compressor. Vehicles occasionally have several compressor options for the same model. Please compare images to your original compressor to confirm suitability prior to purchase. Alternatively you can contact our friendly customer support team for assistance.

Part Number: CCA-27364

Out of stock

SKU: CM2010J INTL375 CL512 Category: Tag:

Product Description

Brand Cool Car Air
Warranty One Year
Clutch Diameter 110mm
Compressor Mounting Direct Mount
Fitting Type Pad
Pulley Section 6 Groove
Series QS70
Suits Unit Make Delphi
Voltage 12v
Inner Bearing Diameter 35mm
Outer Bearing Diameter 50mm
Bearing Width 20mm
Suits Holden Cruze JH 1.6L Petrol 03/2013-11/2016

Compare Images Against Original Unit Or Search With OEM Part Number/s To Confirm Correct Fitment And Suitability.

Or Contact Us For Customer Assistance.

Additional Information

Weight 1 kg

This product is suited for:

Year Make Model Engine
Year Make Model Engine
2013 - 2016 Holden Cruze
  • Fitment
    We have Thousands of Part Numbers within our database for easy part/s identification. Simply enter your Original Part Number/s into the search bar and an instant match will often result. Images shown within our listings are for comparison purposes only. All genuine parts have the word “Genuine” in the title description. Any part branded as “Cool Car” in the product description is our own brand not OEM. Because there are often several options on some vehicles a Visual Comparison to your Original Part is Highly Recommended to avoid any possibility of purchasing the wrong part, It is the responsibility of the purchaser to determine if the listed part is correct for the intended purpose. If you are unsure, please contact our friendly support team prior to purchase.
  • Returns
    Returns are accepted for credit or refund within 30 days of purchase. Parts returned for credit will be credited the purchase price minus shipping fees. Parts returned for refund incur a 20% restocking fee. The purchaser is responsible for all return shipping costs. Fitted parts cannot be returned.

    Our address for all returns is Unit 3/6 Victory East Street Urangan QLD 4655.
    Download Return Form

  • Warranty

    All new a/c parts come with a one year manufacturers warranty from the original date of purchase.

    Incorrect compressor installation procedures can damage your new unit and void your warranty. Please familiarise yourself with the following steps prior to installation.

    (1) Remove the original compressor, drain, measure and examine the oil. If there is any moisture, sludge, discoloration ( black or grey oil ) or metal particles present, the entire a/c system must be thoroughly flushed with an approved flushing agent prior to the installation of your new unit.

    (2) The receiver/drier or desiccant bag must be replaced. Failing to do this will void your warranty.

    (3) If your vehicle is equipped with an orifice tube it should be inspected and replaced if necessary.

    (4) Parallel flow condensers cannot be thoroughly flushed, if there is any contamination it must be replaced. Tube and fin condensers can be flushed and do not need replacing.

    (5) All our compressors come pre-filled with oil, it is advised that the oil from both compressors is drained and measured. Refill the new a/c compressor with the same amount of oil that was drained from your original unit. Or refill the compressor with oil to your vehicle manufacturers specifications. Make sure you use the correct type of compressor oil. (This information will often be located on a decal under the bonnet or on the radiator support panel.)

    (6) Once fitted, rotate the compressor clutch by hand a minimum of 10 times. A concentration of oil in the compressor can cause damage during the first initial start-up.

    (7) Once the system is flushed and new parts installed, the system should be evacuated for a minimum of 45 minutes to evaporate any remaining solvent or moisture.

    (8) Recharge your a/c compressor with the correct amount of refrigerant.

    (9) Any compressor returned for warranty purposes will be assessed as the root cause for it failing prior to a warranty claim being accepted. The buyer is responsible for the return shipping costs back to us.

    In the event you need to make a warranty claim, please attach a copy of your receipt from your licensed workshop clearly showing a new receiver/ drier or desiccant bag had been fitted to your vehicle at the time of compressor installation. If installation was not carried out by a licensed workshop you are required to provide us a copy of a verifiable receipt clearly showing a new receiver/ drier or desiccant bag suited to your vehicle had been purchased.

    We accept no liability for any consequential loss, damage, or any other associated costs. By purchasing from us you agree to these terms.

    Warranty Claim Form

  • Backorders
    Any item showing as “Available on backorder” is not currently held in our inventory. Procurement lead times can vary between one business day up to 12 weeks. We advise you contact us prior to making a purchase on products showing as “Available on backorder “ so we can give an accurate estimate on lead times.
