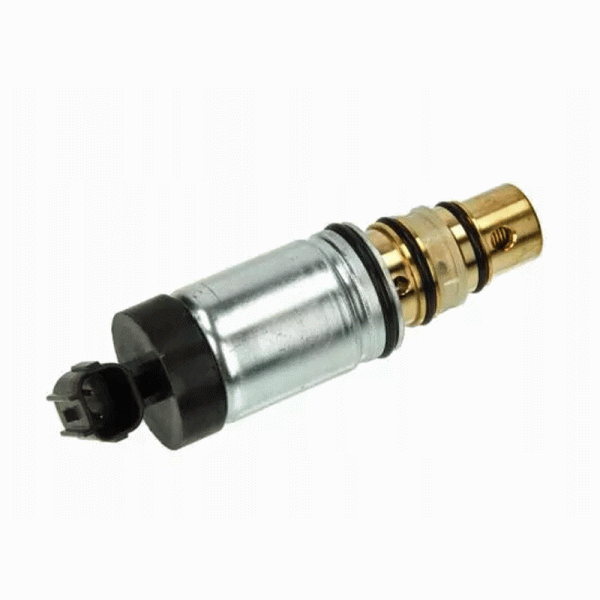

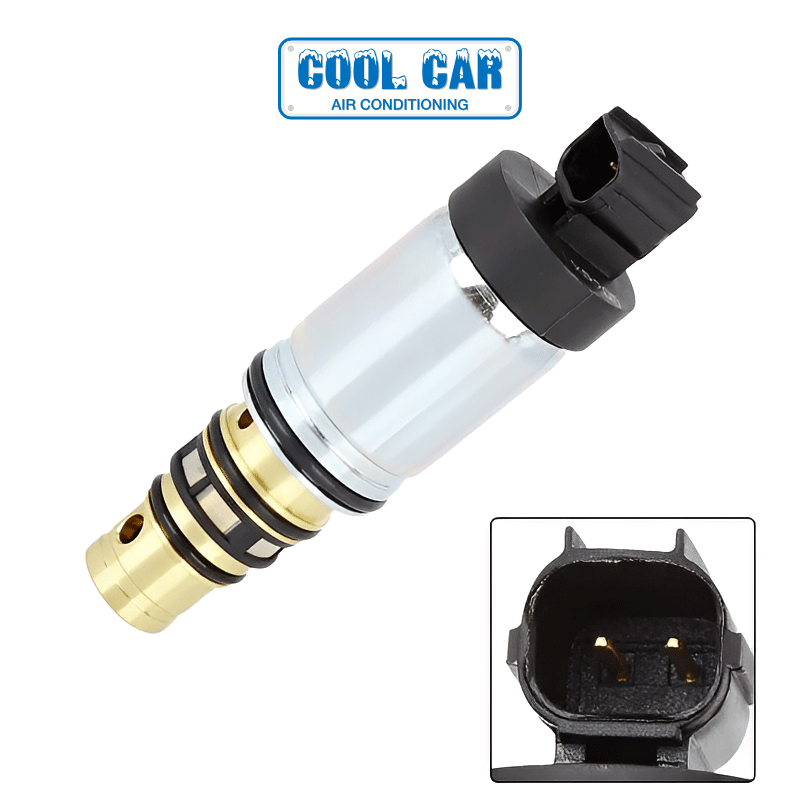

A/C Compressor Control Valve Delphi CVC OPEL Holden Astra Insignia 2008-2017

FREE SHIPPING WITHIN AUSTRALIA

Our Price: $148.00 inc.GST

Sourced from reputable manufacturers and wholesalers all over the world. Our compressor control valves are designed to replace the original A/C compressor control valve on your vehicle. Occasionally there are several options for the same model. Please compare images to your original control valve to confirm suitability prior to purchase. Alternatively you can contact our friendly customer support team for assistance.

Part Number: CCA-34135

In stock

Quantity
SKU: K046 CP2516J Category: Tag:

Product Description

A/C Compressor Control Valve Interchangeable OE Part Numbers

1618047 / 13250606 / 13271266 / 13250609 / 13271269 / 16 18 160 / 68 54 113 / 13250607 / 1618063 / 13250608 / 13271268

Additional Information

Weight 1 kg
Dimensions 12 × 8 × 4 cm

This product is suited for:

Year Make Model Engine
Year Make Model Engine
2008 - 2009 Holden Astra
2008 - 2017 Opel Insignia
2012 - 2013 Opel Astra

OPEL INSIGNIA A (G09) 2.0 E85 Turbo (68) 10/2010 – 03/2017 162kW / 220KM

OPEL INSIGNIA A (G09) 2.0 Turbo 4×4 (68) 07/2011 – 03/2017 184kW / 250KM

OPEL INSIGNIA A (G09) 1.6 (68) 07/2008 – 03/2017 85kW / 116KM

OPEL INSIGNIA A (G09) 1.8 (68) 07/2008 – 03/2017 103kW / 140KM

OPEL INSIGNIA A (G09) 2.0 Turbo (68) 07/2008 – 03/2017 162kW / 220KM

OPEL INSIGNIA A (G09) 2.0 CDTI (68) 07/2008 – 03/2017 81kW / 110KM

OPEL INSIGNIA A (G09) 2.0 CDTI (68) 07/2008 – 03/2017 96kW / 131KM

OPEL INSIGNIA A (G09) 2.0 CDTI (68) 07/2008 – 03/2017 118kW / 160KM

OPEL INSIGNIA A (G09) 1.6 Turbo (68) 07/2008 – 03/2017 132kW / 180KM

OPEL INSIGNIA A (G09) 2.0 Turbo 4×4 (68) 07/2008 – 03/2017 162kW / 220KM

OPEL INSIGNIA A (G09) 2.0 CDTI 4×4 (68) 06/2010 – 03/2017 118kW / 160KM

OPEL INSIGNIA A sedan (G09) 2.0 Turbo E85 (69) 07/2008 – 03/2017 162kW / 220KM

OPEL INSIGNIA A sedan (G09) 2.0 Turbo 4×4 (69) 07/2011 – 03/2017 184kW / 250KM

OPEL INSIGNIA A sedan (G09) 1.6 (69) 07/2008 – 03/2017 85kW / 116KM

OPEL INSIGNIA A sedan (G09) 1.8 (69) 07/2008 – 03/2017 103kW / 140KM

OPEL INSIGNIA A sedan (G09) 2.0 Turbo (69) 07/2008 – 03/2017 162kW / 220KM

OPEL INSIGNIA A sedan (G09) 2.0 CDTI (69) 07/2008 – 03/2017 81kW / 110KM

OPEL INSIGNIA A sedan (G09) 2.0 CDTI (69) 07/2008 – 03/2017 96kW / 131KM

OPEL INSIGNIA A sedan (G09) 2.0 CDTI (69) 07/2008 – 03/2017 118kW / 160KM

OPEL INSIGNIA A sedan (G09) 2.0 Turbo 4×4 (69) 07/2008 – 03/2017 162kW / 220KM

OPEL INSIGNIA A sedan (G09) 1.6 Turbo (69) 07/2008 – 03/2017 132kW / 180KM

OPEL INSIGNIA A sedan (G09) 2.0 CDTI 4×4 (69) 06/2010 – 03/2017 118kW / 160KM

OPEL INSIGNIA A Sports Tourer (G09) 2.0 E85 Turbo (35) 09/2010 – 11/2011 162kW / 220KM

OPEL INSIGNIA A Sports Tourer (G09) 2.0 Turbo 4×4 (35) 09/2011 – 06/2013 184kW / 250KM

OPEL INSIGNIA A Sports Tourer (G09) 1.6 (35) 07/2008 – 06/2012 85kW / 116KM

OPEL INSIGNIA A Sports Tourer (G09) 1.8 (35) 07/2008 – 03/2017 103kW / 140KM

OPEL INSIGNIA A Sports Tourer (G09) 2.0 Turbo (35) 07/2008 – 06/2013 162kW / 220KM

OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI (35) 07/2008 – 06/2013 81kW / 110KM

OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI (35) 07/2008 – 06/2015 96kW / 131KM

OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI (35) 07/2008 – 06/2015 118kW / 160KM

OPEL INSIGNIA A Sports Tourer (G09) 2.0 Turbo 4×4 (35) 07/2008 – 06/2011 162kW / 220KM

OPEL INSIGNIA A Sports Tourer (G09) 1.6 Turbo (35) 01/2009 – 06/2013 132kW / 180KM

OPEL INSIGNIA A Sports Tourer (G09) 2.0 CDTI 4×4 (35) 06/2010 – 06/2015 118kW / 160KM

OPEL ASTRA J (P10) 1.4 Turbo (68) 10/2010 – 10/2015 88kW / 120KM

OPEL ASTRA J (P10) 2.0 CDTI (68) 06/2011 – 10/2015 121kW / 165KM

OPEL ASTRA J (P10) 1.7 CDTI (68) 07/2011 – 10/2015 96kW / 131KM

OPEL ASTRA J (P10) 1.4 (68) 12/2009 – 10/2015 64kW / 87KM

OPEL ASTRA J (P10) 1.4 (68) 12/2009 – 10/2015 74kW / 100KM

OPEL ASTRA J (P10) 1.6 (68) 12/2009 – 10/2015 85kW / 115KM

OPEL ASTRA J (P10) 1.4 Turbo (68) 12/2009 – 10/2015 103kW / 140KM

OPEL ASTRA J (P10) 1.6 Turbo (68) 12/2009 – 10/2015 132kW / 180KM

OPEL ASTRA J (P10) 1.3 CDTI (68) 12/2009 – 10/2015 70kW / 95KM

OPEL ASTRA J (P10) 1.7 CDTI (68) 09/2009 – 10/2015 81kW / 110KM

OPEL ASTRA J (P10) 1.7 CDTI (68) 12/2009 – 10/2015 92kW / 125KM

OPEL ASTRA J (P10) 2.0 CDTI (68) 09/2009 – 10/2015 118kW / 160KM

OPEL MERIVA B large-space body (MPV) (S10) 1.4 LPG (75) 06/2011 – 03/2017 88kW / 120KM

OPEL MERIVA B large-space body (MPV) (S10) 1.4 (75) 06/2010 – 03/2017 74kW / 100KM

OPEL MERIVA B large-space body (MPV) (S10) 1.4 (75) 06/2010 – 03/2017 88kW / 120KM

OPEL MERIVA B large-space body (MPV) (S10) 1.4 (75) 06/2010 – 03/2017 103kW / 140KM

OPEL MERIVA B large-space body (MPV) (S10) 1.7 CDTI (75) 06/2010 – 01/2017 74kW / 100KM

OPEL MERIVA B large-space body (MPV) (S10) 1.3 CDTI (75) 06/2010 – 11/2014 70kW / 95KM

OPEL MERIVA B large-space body (MPV) (S10) 1.7 CDTI (75) 06/2010 – 06/2015 81kW / 110KM

OPEL MERIVA B large-space body (MPV) (S10) 1.7 CDTI (75) 06/2010 – 10/2013 96kW / 131KM

OPEL ASTRA J Sports Tourer (P10) 1.4 (35) 10/2010 – 10/2015 74kW / 101KM

OPEL ASTRA J Sports Tourer (P10) 1.6 (35) 10/2010 – 10/2015 85kW / 116KM

OPEL ASTRA J Sports Tourer (P10) 1.4 Turbo (35) 10/2010 – 10/2015 88kW / 120KM

OPEL ASTRA J Sports Tourer (P10) 1.4 Turbo (35) 10/2010 – 10/2015 103kW / 140KM

OPEL ASTRA J Sports Tourer (P10) 1.6 Turbo (35) 10/2010 – 10/2015 132kW / 180KM

OPEL ASTRA J Sports Tourer (P10) 1.3 CDTI (35) 10/2010 – 10/2014 70kW / 95KM

OPEL ASTRA J Sports Tourer (P10) 1.7 CDTI (35) 10/2010 – 10/2015 81kW / 110KM

OPEL ASTRA J Sports Tourer (P10) 1.7 CDTI (35) 10/2010 – 10/2015 92kW / 125KM

OPEL ASTRA J Sports Tourer (P10) 2.0 CDTI (35) 10/2010 – 10/2015 118kW / 160KM

OPEL ASTRA J Sports Tourer (P10) 1.7 CDTI (35) 10/2010 – 10/2015 74kW / 101KM

OPEL ASTRA J Sports Tourer (P10) 2.0 CDTI (35) 08/2011 – 10/2015 121kW / 165KM

OPEL ASTRA J Sports Tourer (P10) 1.7 CDTI (35) 10/2010 – 10/2015 96kW / 131KM

OPEL ASTRA J GTC 1.7 CDTI (08) 10/2011 – 10/2020 96kW / 131KM

OPEL ASTRA J sedan 1.6 (69) 06/2012 85kW / 116KM

OPEL INSIGNIA A Country Tourer (G09)

OPEL INSIGNIA A Country Tourer (G09) 2.0 CDTi (47) 07/2008 – 03/2017 96kW / 131KM

  • Fitment
    We have Thousands of Part Numbers within our database for easy part/s identification. Simply enter your Original Part Number/s into the search bar and an instant match will often result. Images shown within our listings are for comparison purposes only. All genuine parts have the word “Genuine” in the title description. Any part branded as “Cool Car” in the product description is our own brand not OEM. Because there are often several options on some vehicles a Visual Comparison to your Original Part is Highly Recommended to avoid any possibility of purchasing the wrong part, It is the responsibility of the purchaser to determine if the listed part is correct for the intended purpose. If you are unsure, please contact our friendly support team prior to purchase.
  • Returns
    Returns are accepted for credit or refund within 30 days of purchase. Parts returned for credit will be credited the purchase price minus shipping fees. Parts returned for refund incur a 20% restocking fee. The purchaser is responsible for all return shipping costs. Fitted parts cannot be returned.

    Our address for all returns is Unit 3/6 Victory East Street Urangan QLD 4655.
    Download Return Form

  • Warranty

    All new a/c parts come with a one year manufacturers warranty from the original date of purchase.

    Incorrect compressor installation procedures can damage your new unit and void your warranty. Please familiarise yourself with the following steps prior to installation.

    (1) Remove the original compressor, drain, measure and examine the oil. If there is any moisture, sludge, discoloration ( black or grey oil ) or metal particles present, the entire a/c system must be thoroughly flushed with an approved flushing agent prior to the installation of your new unit.

    (2) The receiver/drier or desiccant bag must be replaced. Failing to do this will void your warranty.

    (3) If your vehicle is equipped with an orifice tube it should be inspected and replaced if necessary.

    (4) Parallel flow condensers cannot be thoroughly flushed, if there is any contamination it must be replaced. Tube and fin condensers can be flushed and do not need replacing.

    (5) All our compressors come pre-filled with oil, it is advised that the oil from both compressors is drained and measured. Refill the new a/c compressor with the same amount of oil that was drained from your original unit. Or refill the compressor with oil to your vehicle manufacturers specifications. Make sure you use the correct type of compressor oil. (This information will often be located on a decal under the bonnet or on the radiator support panel.)

    (6) Once fitted, rotate the compressor clutch by hand a minimum of 10 times. A concentration of oil in the compressor can cause damage during the first initial start-up.

    (7) Once the system is flushed and new parts installed, the system should be evacuated for a minimum of 45 minutes to evaporate any remaining solvent or moisture.

    (8) Recharge your a/c compressor with the correct amount of refrigerant.

    (9) Any compressor returned for warranty purposes will be assessed as the root cause for it failing prior to a warranty claim being accepted. The buyer is responsible for the return shipping costs back to us.

    In the event you need to make a warranty claim, please attach a copy of your receipt from your licensed workshop clearly showing a new receiver/ drier or desiccant bag had been fitted to your vehicle at the time of compressor installation. If installation was not carried out by a licensed workshop you are required to provide us a copy of a verifiable receipt clearly showing a new receiver/ drier or desiccant bag suited to your vehicle had been purchased.

    We accept no liability for any consequential loss, damage, or any other associated costs. By purchasing from us you agree to these terms.
