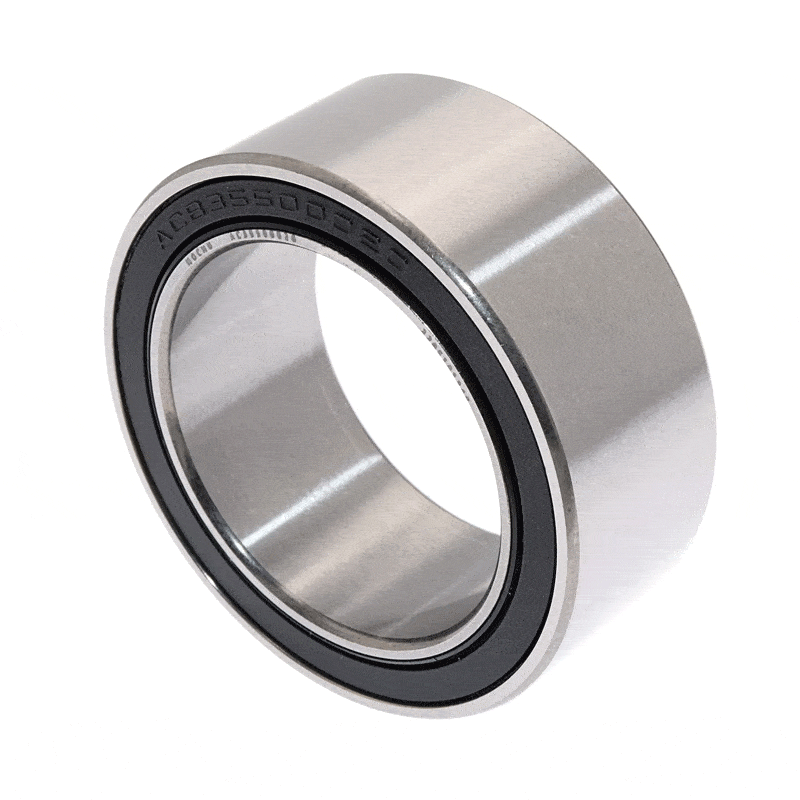

Air Conditioning A/C Compressor Clutch Pulley Bearing 35x50x20 Delphi Halla Mitsubishi Sanden Visteon

FREE SHIPPING WITHIN AUSTRALIA

Our Price: $44.00 inc.GST

Sourced from reputable manufacturers and wholesalers all over the world. Our compressor bearings are designed to replace the original bearing on your A/C compressor.  Compare dimensions against to your original bearing to confirm suitability prior to purchase. Alternatively you can contact our friendly customer support team for assistance.

Part Number: CCA-24300

In stock

Quantity

Product Description

Specifications
Compressor type:
Sanden 706, 7H13, SD7H13,CVC, TR090, TR070
Size:
35BD5020
35x50x20mm
35x50x20
35mm x 50mm x20mm
35BD5020DUK
35 50 20
Applications:
Delphi: CVC-125, CVC-135, CVC-135E
Ford: Scroll
Halla FS18, FS20
Mitsubishi: MSC130CVSG, MSC130CVSG2
Sanden: SD7B10, TR090, TR105,TR105VS, TRF090, TRF105, TRS090, TRS105, TRSA09,TRSA12, TRSE07
Visteon: HS090, HS090L, HS090, HS090R, HS110, HS110R

Compare Images Against Original Unit Or Search With OEM Part Number/s To Confirm Correct Fitment And Suitability Or Contact Us For Customer Assistance.



1854113 1854157 1854356 12792669 12843774 13106850 13140505 13396664 13412248 13412249 13412250 13412251 13413335 13414017 13414018 13414019 13414020 13424410 13424411 71724084 71781795 71786549 71791315 71792267 71797319 9613260680 9640486480 9648138680 9648138980 9648238480 9651910980 9684458880 9684960280 9684960580 9800839580 9800840180 9800840380 9819711680 9822826880 9825868180 147100-4770 447140-1393 447140-1471 447140-1473 447140-1490 447140-1510 447140-1511 447140-1981 447140-1982 447140-1984 447140-1985 447180-5533 447180-6532 447190-2382 447190-2383 447190-4650 447190-4651 447190-4652 447190-7950 447190-7951 447190-7952 447190-7953 447190-7954 447190-7955 447190-7956 447190-7957 447190-7958 447190-7959 447190-8714 447190-9280 447190-9281 447190-9282 447190-9283 447190-9284 447190-9285 6453QJ 6453QK 6453WN 6453WP 6453WW 6453WX 6453WY 6453WZ 6453XE 6453XF 6453XL 97701-3K220 97701-3K520 97701-3K620 97701-3K720 97701-3K800 97701-4P151 9X23-19D629-DA 9X23-19D629-DB A0008303002 A0008303801 A0008303902 A0008304002 A0008304400 A0008305301 A0022303311 A0022304911 A0022308311 A0032306911 AM5N-19D629-AA AM5N-19D629-AB AV61-19D629-HA F500-DB3AA-01 F500-DB3AA-02 F500-DB3AA-03 F500-DB3AA-04 F500-DB3AA-05 F500-DB3AA-06 F500-DB3AA-07 F500-DB3DA-01 F500-DC4AA-03 F500-JY9AE-03 F500-JY9AE-04 F500-JY9BE-01 F500-JY9BE-02 F500-KP1AA-03 F500-KP1AA-04 PXC14-1785 PXC14-1787 PXC16-1236 PXC16-1237 PXC16-1632P PXC16-1634P PXC16-1656P PXC16-1661 PXC16-1664 PXC16-1666 PXC16-1666P PXC16-1671 PXC16-1681 PXC16-1681E PXC16-1681P PXC16-1682P PXC16-1684 PXC16-1684P PXC16-1694P PXC16-8722 PXC16-8722P PXE16-8676F PXE16-8680F PXE16-8680P PXE16-8681F PXE16-8681P PXE16-8688 PXE16-8689 PXE16-U4568 PXE16-U4572 PXE16-U8688A PXE16-U8689A PXV16-1750P PXV16-1752P PXV16-1754P PXV16-1755P PXV16-1756 PXV16-8604 PXV16-8608 PXV16-8609 PXV16-8612 SD6V10-1512 SD6V10-1512F SD6V10-1513F SD6V12-1461 SD6V12-1461F SD6V12-1916 SD6V12-1917 SD6V12-1921 SD6V12-1921F SD6V12-1948 SD6V12-1961F SD7C16-1300 SD7C16-1300F SD7C16-1301 SD7C16-1301F SD7C16-1304 SD7C16-1304F SD7C16-1308 SD7C16-1308F SD7C16-1309 SD7C16-1341 SD7C16-1341F SD7C16-1344 SD7C16-1346F SD7C16-1390 SD7C16-1390E SD7C16-1390F SD7C16-1392 Z0006203B Z0006203C Z0006203D Z0006495A Z0007225B Z0008276 Z0008276A Z0018736

  • Fitment
    We have Thousands of Part Numbers within our database for easy part/s identification. Simply enter your Original Part Number/s into the search bar and an instant match will often result. Images shown within our listings are for comparison purposes only. All genuine parts have the word “Genuine” in the title description. Any part branded as “Cool Car” in the product description is our own brand not OEM. Because there are often several options on some vehicles a Visual Comparison to your Original Part is Highly Recommended to avoid any possibility of purchasing the wrong part, It is the responsibility of the purchaser to determine if the listed part is correct for the intended purpose. If you are unsure, please contact our friendly support team prior to purchase.
  • Returns
    Returns are accepted for credit or refund within 30 days of purchase. Parts returned for credit will be credited the purchase price minus shipping fees. Parts returned for refund incur a 20% restocking fee. The purchaser is responsible for all return shipping costs. Fitted parts cannot be returned.

    Our address for all returns is Unit 3/6 Victory East Street Urangan QLD 4655.
    Download Return Form

  • Warranty

    All new a/c parts come with a one year manufacturers warranty from the original date of purchase.

    Incorrect compressor installation procedures can damage your new unit and void your warranty. Please familiarise yourself with the following steps prior to installation.

    (1) Remove the original compressor, drain, measure and examine the oil. If there is any moisture, sludge, discoloration ( black or grey oil ) or metal particles present, the entire a/c system must be thoroughly flushed with an approved flushing agent prior to the installation of your new unit.

    (2) The receiver/drier or desiccant bag must be replaced. Failing to do this will void your warranty.

    (3) If your vehicle is equipped with an orifice tube it should be inspected and replaced if necessary.

    (4) Parallel flow condensers cannot be thoroughly flushed, if there is any contamination it must be replaced. Tube and fin condensers can be flushed and do not need replacing.

    (5) All our compressors come pre-filled with oil, it is advised that the oil from both compressors is drained and measured. Refill the new a/c compressor with the same amount of oil that was drained from your original unit. Or refill the compressor with oil to your vehicle manufacturers specifications. Make sure you use the correct type of compressor oil. (This information will often be located on a decal under the bonnet or on the radiator support panel.)

    (6) Once fitted, rotate the compressor clutch by hand a minimum of 10 times. A concentration of oil in the compressor can cause damage during the first initial start-up.

    (7) Once the system is flushed and new parts installed, the system should be evacuated for a minimum of 45 minutes to evaporate any remaining solvent or moisture.

    (8) Recharge your a/c compressor with the correct amount of refrigerant.

    (9) Any compressor returned for warranty purposes will be assessed as the root cause for it failing prior to a warranty claim being accepted. The buyer is responsible for the return shipping costs back to us.

    In the event you need to make a warranty claim, please attach a copy of your receipt from your licensed workshop clearly showing a new receiver/ drier or desiccant bag had been fitted to your vehicle at the time of compressor installation. If installation was not carried out by a licensed workshop you are required to provide us a copy of a verifiable receipt clearly showing a new receiver/ drier or desiccant bag suited to your vehicle had been purchased.

    We accept no liability for any consequential loss, damage, or any other associated costs. By purchasing from us you agree to these terms.
