Automotive A/C Air Conditioning HVAC Tube Expander Kit

FREE SHIPPING WITHIN AUSTRALIA

Our Price: $220.00 inc.GST

Features:
1. Made of hardened steel, strong and durable.
2. Wide range of industrial applications.
3. Strong plastic carry case for easy storage.
4. High quality, designed for professional use.

Part Number: CCA-33779

In stock

Quantity
SKU: XG055A CT-100M Category: Tag:

Product Description

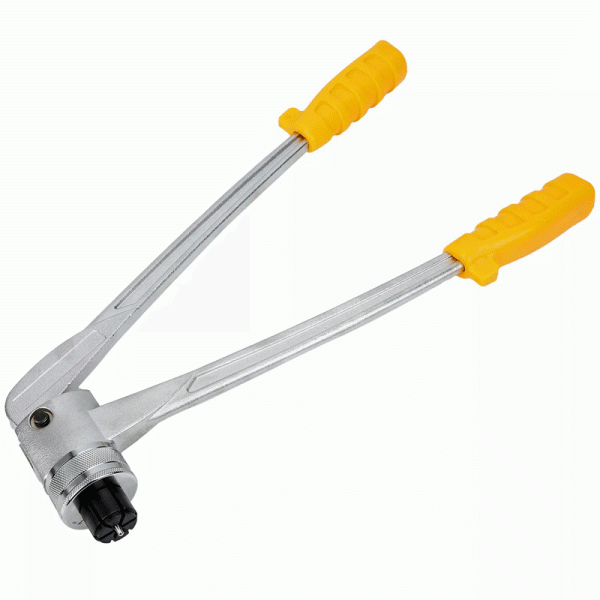

Tube Expander
DX model: CT-100A
Uses: Suitable for copper pipes, aluminium pipes, thin-walled stainless steel pipes and other hoses, expanding, and expanding copper pipes to connect two copper pipes to each other!
Features:
Manual, one-step expander design. The tube can be expanded quickly without using other accessories,
Accurately connect copper pipes, aluminium pipes, soft steel pipes
Freely movable, centrally positioned expanding needle mechanism.
The expansion jaws are made of high-quality hardened steel.
Specification:
10mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm.

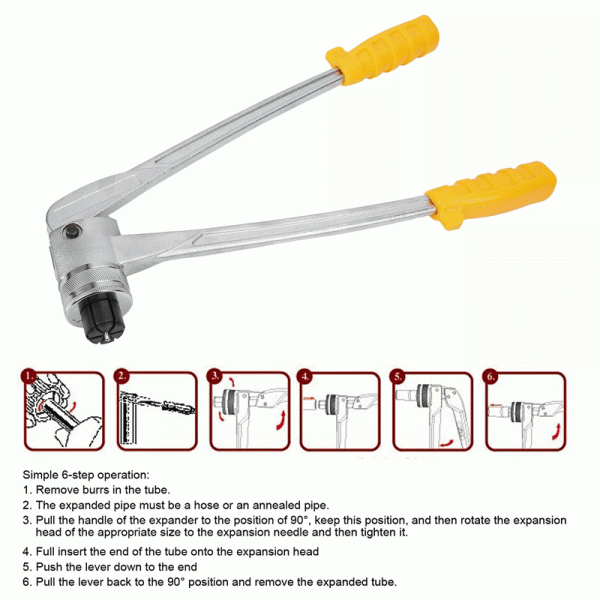

Simple six-step operation:
1. Remove the burr inside the tube.
2. The expanded pipe must be a hose or a annealed pipe.
3. Pull the expander handle to the 90 degree position. Hold this position and rotate the expansion head of the appropriate size to expand the needle and tighten.
4. Insert the end of the tube into the expansion head completely.
5. Push the lever down to the end.
6. Pull the lever back to 90 degrees to remove the expanded tube.

Additional Information

Weight 3 kg
  • Fitment
    We have Thousands of Part Numbers within our database for easy part/s identification. Simply enter your Original Part Number/s into the search bar and an instant match will often result. Images shown within our listings are for comparison purposes only. All genuine parts have the word “Genuine” in the title description. Any part branded as “Cool Car” in the product description is our own brand not OEM. Because there are often several options on some vehicles a Visual Comparison to your Original Part is Highly Recommended to avoid any possibility of purchasing the wrong part, It is the responsibility of the purchaser to determine if the listed part is correct for the intended purpose. If you are unsure, please contact our friendly support team prior to purchase.
  • Returns
    Returns are accepted for credit or refund within 30 days of purchase. Parts returned for credit will be credited the purchase price minus shipping fees. Parts returned for refund incur a 15% restocking fee. The purchaser is responsible for all return shipping costs. Fitted parts cannot be returned.


    Download Return Form

  • Warranty

    All new a/c parts come with a one year manufacturers warranty from the original date of purchase.

    Incorrect compressor installation procedures can damage your new unit and void your warranty. Please familiarise yourself with the following steps prior to installation.

    (1) Remove the original compressor, drain, measure and examine the oil. If there is any moisture, sludge, discoloration ( black or grey oil ) or metal particles present, the entire a/c system must be thoroughly flushed with an approved flushing agent prior to the installation of your new unit.

    (2) The receiver/drier or desiccant bag must be replaced. Failing to do this will void your warranty.

    (3) If your vehicle is equipped with an orifice tube it should be inspected and replaced if necessary.

    (4) Parallel flow condensers cannot be thoroughly flushed, if there is any contamination it must be replaced. Tube and fin condensers can be flushed and do not need replacing.

    (5) All our compressors come pre-filled with oil, it is advised that the oil from both compressors is drained and measured. Refill the new a/c compressor with the same amount of oil that was drained from your original unit. Or refill the compressor with oil to your vehicle manufacturers specifications. Make sure you use the correct type of compressor oil. (This information will often be located on a decal under the bonnet or on the radiator support panel.)

    (6) Once fitted, rotate the compressor clutch by hand a minimum of 10 times. A concentration of oil in the compressor can cause damage during the first initial start-up.

    (7) Once the system is flushed and new parts installed, the system should be evacuated for a minimum of 45 minutes to evaporate any remaining solvent or moisture.

    (8) Recharge your a/c compressor with the correct amount of refrigerant.

    (9) Any compressor returned for warranty purposes will be assessed as the root cause for it failing prior to a warranty claim being accepted. The buyer is responsible for the return shipping costs back to us.

    In the event you need to make a warranty claim, please attach a copy of your receipt from your licensed workshop clearly showing a new receiver/ drier or desiccant bag had been fitted to your vehicle at the time of compressor installation. If installation was not carried out by a licensed workshop you are required to provide us a copy of a verifiable receipt clearly showing a new receiver/ drier or desiccant bag suited to your vehicle had been purchased.

    We accept no liability for any consequential loss, damage, or any other associated costs. By purchasing from us you agree to these terms.

    Warranty Claim Form

  • Backorders
    Any item showing as “Available on backorder” is not currently held in our inventory. Procurement lead times can vary between one business day up to 12 weeks. We advise you contact us prior to making a purchase on products showing as “Available on backorder “ so we can give an accurate estimate on lead times.
