Our Price: Original price was: $275.00.$182.00Current price is: $182.00. inc.GST

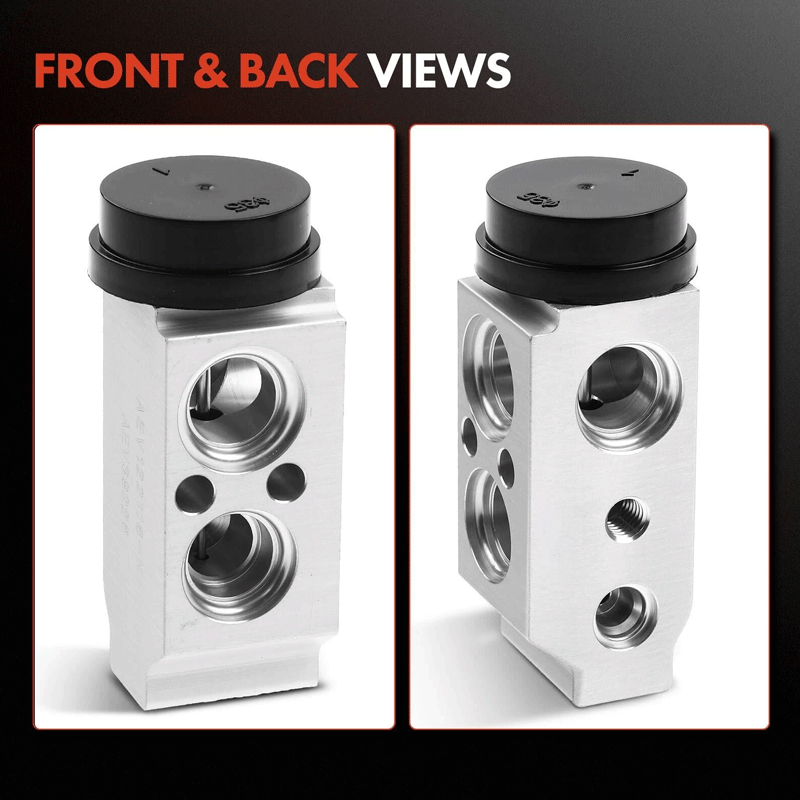

Sourced from reputable manufacturers and wholesalers all over the world. Our thermal expansion valves are designed to replace the original on your vehicle. Compare images to confirm suitability prior to purchase. Alternatively you can contact our friendly customer support team for assistance.
Part Number: CCA-45067
In stock
| Brand | Doowon / Hanon |
| Warranty | One Year |
| Suits | MAN TGS 10.5L Diesel 2007-2021 |
This Is A Genuine Hanon Expansion Valve As Used By MAN Dealerships At A Fraction Of The Price. Compare Images Against Original Unit Or Search With OEM Part Number/s To Confirm Correct Fitment And Suitability Or Contact Us For Customer Assistance
| Weight | 1 kg |
|---|
MAN TGS 03S,06S I 10.5L D 2066 LF 40,D 2066 LF 36,D 2066 LF 25 Euro 5 SOHC 24v Turbo Diesel Direct Inj. 324kW Dump Truck (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03S,06S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 235kW Dump Truck (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03S,06S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 265kW Dump Truck (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03S,06S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 294kW Dump Truck (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03S,06S,10S,15S I 10.5L D 2066 LF 40,D 2066 LF 36,D 2066 LF 25 Euro 5 SOHC 24v Turbo Diesel Direct Inj. 324kW Platform/Chassis (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03S,06S,10S,15S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 235kW Platform/Chassis (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03S,06S,10S,15S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 265kW General Purpose Vehicle (18 Ton) 4×2 [06/06 – 09/21]
MAN TGS 03S,06S,10S,15S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 265kW Platform/Chassis (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03S,06S,10S,15S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 294kW Platform/Chassis (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03W,06W,71W,72W I 10.5L D 2066 LF 01 Euro 3 SOHC 24v Turbo Diesel Direct Inj. 316kW Platform/Chassis (19 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03W,06W,71W,72W I 10.5L D 2066 LF 02 Euro 3 SOHC 24v Turbo Diesel Direct Inj. 287kW Platform/Chassis (19 Ton) 4×2 [06/08 – 09/21]
MAN TGS 03W,06W,71W,72W I 10.5L D 2066 LF 03 Euro 3 SOHC 24v Turbo Diesel Direct Inj. 257kW Platform/Chassis (19 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03W,06W,71W,72W I 10.5L D 2066 LF 06,D 2066 LF 63,D 2066 LF 49 Euro 4 SOHC 24v Turbo Diesel Direct Inj. 294kW Truck Tractor (19 Ton) 4×2 [02/11 – 09/21]
MAN TGS 03W,06W,71W,72W I 10.5L D 2066 LF 06,D 2066 LF 63,D 2066 LF 49 Euro 4 SOHC 24v Turbo Diesel Direct Inj. 294kW Truck Tractor (21 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03W,06W,71W,72W I 10.5L D 2066 LF 62,D 2066 LF 50 Euro 4 SOHC 24v Turbo Diesel Direct Inj. 324kW Truck Tractor (19 Ton) 4×2 [02/11 – 09/21]
MAN TGS 03W,06W,71W,72W I 10.5L D 2066 LF 62,D 2066 LF 50 Euro 4 SOHC 24v Turbo Diesel Direct Inj. 324kW Truck Tractor (21 Ton) 4×2 [10/07 – 09/21]
MAN TGS 03W,06W,71W,72W I 10.5L D 2066 LF 64,D 2066 LF 48,D 2066 LF 07 Euro 4 SOHC 24v Turbo Diesel Direct Inj. 265kW Truck Tractor (19 Ton) 4×2 [02/11 – 09/21]
MAN TGS 03W,06W,71W,72W I 10.5L D 2066 LF 64,D 2066 LF 48,D 2066 LF 07 Euro 4 SOHC 24v Turbo Diesel Direct Inj. 265kW Truck Tractor (21 Ton) 4×2 [10/07 – 09/21]
MAN TGS 06S,08S,10S,13S I 10.5L D 2066 LF 40,D 2066 LF 36,D 2066 LF 25 Euro 5 SOHC 24v Turbo Diesel Direct Inj. 324kW Truck Tractor (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 06S,08S,10S,13S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 235kW Truck Tractor (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 06S,08S,10S,13S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 265kW Truck Tractor (18 Ton) 4×2 [10/07 – 09/21]
MAN TGS 06S,08S,10S,13S I 10.5L Euro 6 SOHC 24v Turbo Diesel Direct Inj. 294kW Truck Tractor (18 Ton) 4×2 [10/07 – 09/21]
Inlet Fitting #5
Outlet Fitting #10
Suction Inlet Fitting #10
Suction Outlet Fitting #10
Tonnage 1.5
Note Inlet: (7.20mm)
Outlet: (14.30mm)
Suction Inlet: (14.50mm) Suction Outlet: (14.50mm)
Our address for all returns is Unit 3/6 Victory East Street Urangan QLD 4655.
Download Return Form
All new a/c parts come with a one year manufacturers warranty from the original date of purchase.
Incorrect compressor installation procedures can damage your new unit and void your warranty. Please familiarise yourself with the following steps prior to installation.
(1) Remove the original compressor, drain, measure and examine the oil. If there is any moisture, sludge, discoloration ( black or grey oil ) or metal particles present, the entire a/c system must be thoroughly flushed with an approved flushing agent prior to the installation of your new unit.
(2) The receiver/drier or desiccant bag must be replaced. Failing to do this will void your warranty.
(3) If your vehicle is equipped with an orifice tube it should be inspected and replaced if necessary.
(4) Parallel flow condensers cannot be thoroughly flushed, if there is any contamination it must be replaced. Tube and fin condensers can be flushed and do not need replacing.
(5) All our compressors come pre-filled with oil, it is advised that the oil from both compressors is drained and measured. Refill the new a/c compressor with the same amount of oil that was drained from your original unit. Or refill the compressor with oil to your vehicle manufacturers specifications. Make sure you use the correct type of compressor oil. (This information will often be located on a decal under the bonnet or on the radiator support panel.)
(6) Once fitted, rotate the compressor clutch by hand a minimum of 10 times. A concentration of oil in the compressor can cause damage during the first initial start-up.
(7) Once the system is flushed and new parts installed, the system should be evacuated for a minimum of 45 minutes to evaporate any remaining solvent or moisture.
(8) Recharge your a/c compressor with the correct amount of refrigerant.
(9) Any compressor returned for warranty purposes will be assessed as the root cause for it failing prior to a warranty claim being accepted. The buyer is responsible for the return shipping costs back to us.
In the event you need to make a warranty claim, please attach a copy of your receipt from your licensed workshop clearly showing a new receiver/ drier or desiccant bag had been fitted to your vehicle at the time of compressor installation. If installation was not carried out by a licensed workshop you are required to provide us a copy of a verifiable receipt clearly showing a new receiver/ drier or desiccant bag suited to your vehicle had been purchased.
We accept no liability for any consequential loss, damage, or any other associated costs. By purchasing from us you agree to these terms.
