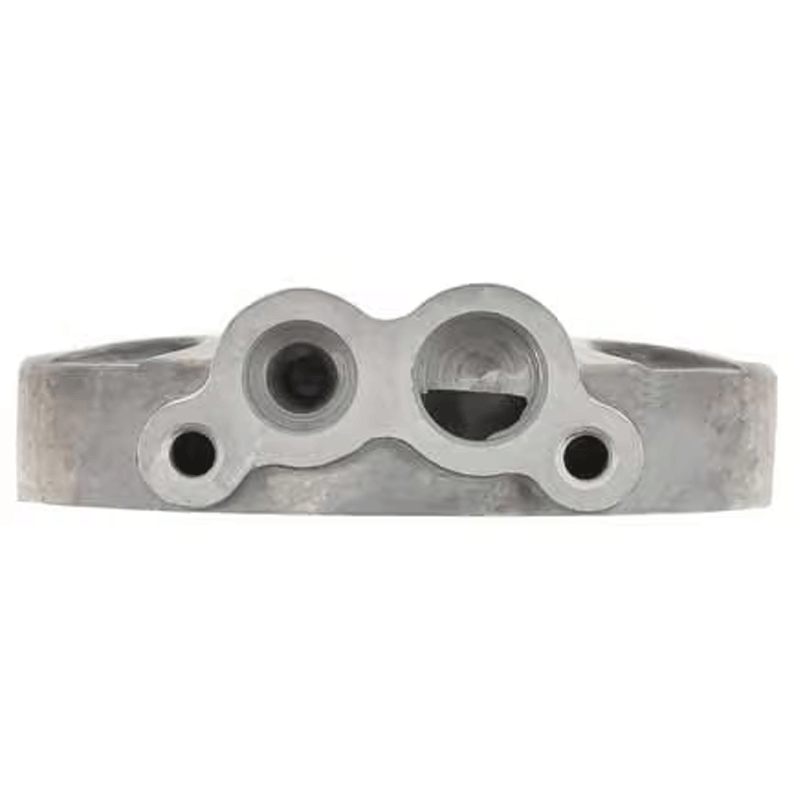

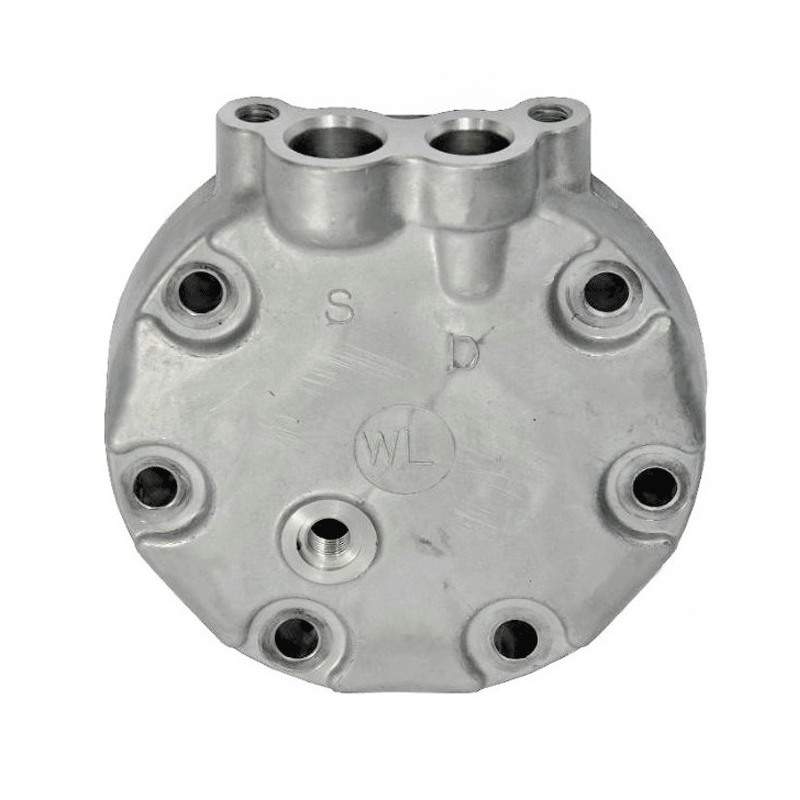

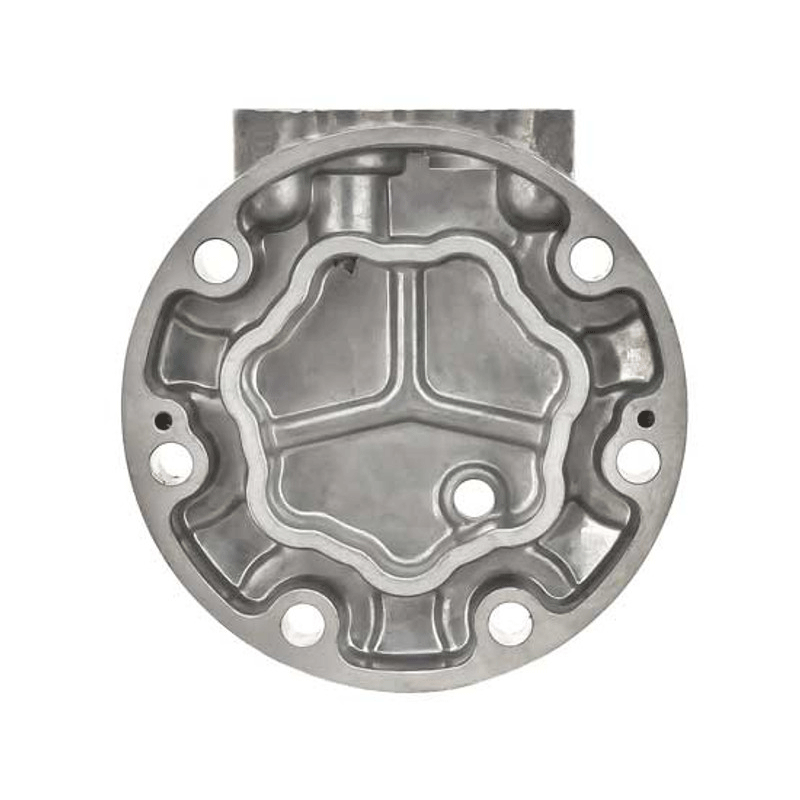

Sanden SD7H13 SD7H15 Type WL Rear Head Caterpillar Kobelco Komatsu New Holland

FREE SHIPPING WITHIN AUSTRALIA

Our Price: $95.00 inc.GST

Sourced from reputable manufacturers and wholesalers all over the world. Our thermal expansion valves are designed to replace the original on your vehicle. Compare images to confirm suitability prior to purchase. Alternatively you can contact our friendly customer support team for assistance.

Part Number: CCA-45440

Out of stock

Product Description

ApplicationSanden Compressor
DescriptionSanden WL Head
InletPad
OutletPad
Fitting StyleVertical Pad
M8-1.25 Bolt
Head TypeWL
ModelSD7H13 / SD7H15
Mounting Type6 bolt
Product NameCompressor Head
O-Ring #10015
O-Ring #20013
NoteWith Pressure Relief Valve Port Hole

Compare Images Against Original Unit Or Search With OEM Part Number/s To Confirm Correct Fitment And Suitability Or Contact Us For Customer Assistance

Known Applications:
CATERPILLAR 308C
CATERPILLAR 308C CR
CATERPILLAR 308D
CATERPILLAR 314C CR
CATERPILLAR 314C LCR
CATERPILLAR 314D CR
CATERPILLAR 314D LCR
CATERPILLAR 321C LCR
CATERPILLAR 321D LCR
KOBELCO 235SR
KOBELCO 75UR
KOBELCO ED190LC
KOBELCO ED190LC-6E
KOBELCO SK 130UR
KOBELCO SK 135SR
KOBELCO SK 160LC
KOBELCO SK 160LC-6E
KOBELCO SK 200-6
KOBELCO SK 200-6ES
KOBELCO SK 200SR
KOBELCO SK 210
KOBELCO SK 210LC
KOBELCO SK 210LC-6E
KOBELCO SK 235SR
KOBELCO SK 250
KOBELCO SK 250LC
KOBELCO SK 250LC-6E
KOBELCO SK 290LC
KOBELCO SK 290LC-6E
KOBELCO SK 330LC
KOBELCO SK 330LC-6E
KOBELCO SK 480LC
KOBELCO SK 70SR-2
KOBELCO SK 850
KOMATSU GD555-5
KOMATSU GD655-3E0
KOMATSU GD675-3E0
KOMATSU GD675-5
KOMATSU GD755-5R
KOMATSU HD785-7
KOMATSU WA150-6
KOMATSU WA150PZ-6
KOMATSU WA200-6
KOMATSU WA200PZ-6
KOMATSU WA250-6
KOMATSU WA250PZ-6
KOMATSU WA320-6
KOMATSU WA320-7
KOMATSU WA320PZ-6
KOMATSU WA380-6
KOMATSU WA380Z-6
KOMATSU WA430-6
KOMATSU WA450-6
KOMATSU WA470-6
KOMATSU WA470-7
KOMATSU WA480-6
LINK-BELT 210LX
LINK-BELT 240LX
NEW HOLLAND E135B
NEW HOLLAND E160 NEW HOLLAND E175B NEW
HOLLAND
E215
NEW HOLLAND E215B
NEW HOLLAND E235BSR
NEW HOLLAND E235BSRLC
NEW HOLLAND E235BSRNLC
NEW HOLLAND EH160
NEW HOLLAND EH215

Compressor OEM numbers:
CATERPILLAR: 229-8994, 2298994
CATERPILLAR: 2597245, 189-2746, 259-7245, 1892746
KOBELCO: 5690788122
KOBELCO: TDKR151300S
KOBELCO: TDKR151350S, LC91V00001F1, LC91V00002F2, TDKR151310S, YX91V00001F2, YT20M00022F4, LC91V00002F3
KOMATSU: 23B0761112, 23B-07-61112
KOMATSU: 423S624330, 423-S62-4330
LINK-BELT: 314005731
NEW HOLLAND: YN20M00107F2, LC91V00002F2
4388086

  • Fitment
    We have Thousands of Part Numbers within our database for easy part/s identification. Simply enter your Original Part Number/s into the search bar and an instant match will often result. Images shown within our listings are for comparison purposes only. All genuine parts have the word “Genuine” in the title description. Any part branded as “Cool Car” in the product description is our own brand not OEM. Because there are often several options on some vehicles a Visual Comparison to your Original Part is Highly Recommended to avoid any possibility of purchasing the wrong part, It is the responsibility of the purchaser to determine if the listed part is correct for the intended purpose. If you are unsure, please contact our friendly support team prior to purchase.
  • Returns
    Returns are accepted for credit or refund within 30 days of purchase. Parts returned for credit will be credited the purchase price minus shipping fees. Parts returned for refund incur a 20% restocking fee. The purchaser is responsible for all return shipping costs. Fitted parts cannot be returned.

    Our address for all returns is Unit 3/6 Victory East Street Urangan QLD 4655.
    Download Return Form

  • Warranty

    All new a/c parts come with a one year manufacturers warranty from the original date of purchase.

    Incorrect compressor installation procedures can damage your new unit and void your warranty. Please familiarise yourself with the following steps prior to installation.

    (1) Remove the original compressor, drain, measure and examine the oil. If there is any moisture, sludge, discoloration ( black or grey oil ) or metal particles present, the entire a/c system must be thoroughly flushed with an approved flushing agent prior to the installation of your new unit.

    (2) The receiver/drier or desiccant bag must be replaced. Failing to do this will void your warranty.

    (3) If your vehicle is equipped with an orifice tube it should be inspected and replaced if necessary.

    (4) Parallel flow condensers cannot be thoroughly flushed, if there is any contamination it must be replaced. Tube and fin condensers can be flushed and do not need replacing.

    (5) All our compressors come pre-filled with oil, it is advised that the oil from both compressors is drained and measured. Refill the new a/c compressor with the same amount of oil that was drained from your original unit. Or refill the compressor with oil to your vehicle manufacturers specifications. Make sure you use the correct type of compressor oil. (This information will often be located on a decal under the bonnet or on the radiator support panel.)

    (6) Once fitted, rotate the compressor clutch by hand a minimum of 10 times. A concentration of oil in the compressor can cause damage during the first initial start-up.

    (7) Once the system is flushed and new parts installed, the system should be evacuated for a minimum of 45 minutes to evaporate any remaining solvent or moisture.

    (8) Recharge your a/c compressor with the correct amount of refrigerant.

    (9) Any compressor returned for warranty purposes will be assessed as the root cause for it failing prior to a warranty claim being accepted. The buyer is responsible for the return shipping costs back to us.

    In the event you need to make a warranty claim, please attach a copy of your receipt from your licensed workshop clearly showing a new receiver/ drier or desiccant bag had been fitted to your vehicle at the time of compressor installation. If installation was not carried out by a licensed workshop you are required to provide us a copy of a verifiable receipt clearly showing a new receiver/ drier or desiccant bag suited to your vehicle had been purchased.

    We accept no liability for any consequential loss, damage, or any other associated costs. By purchasing from us you agree to these terms.
