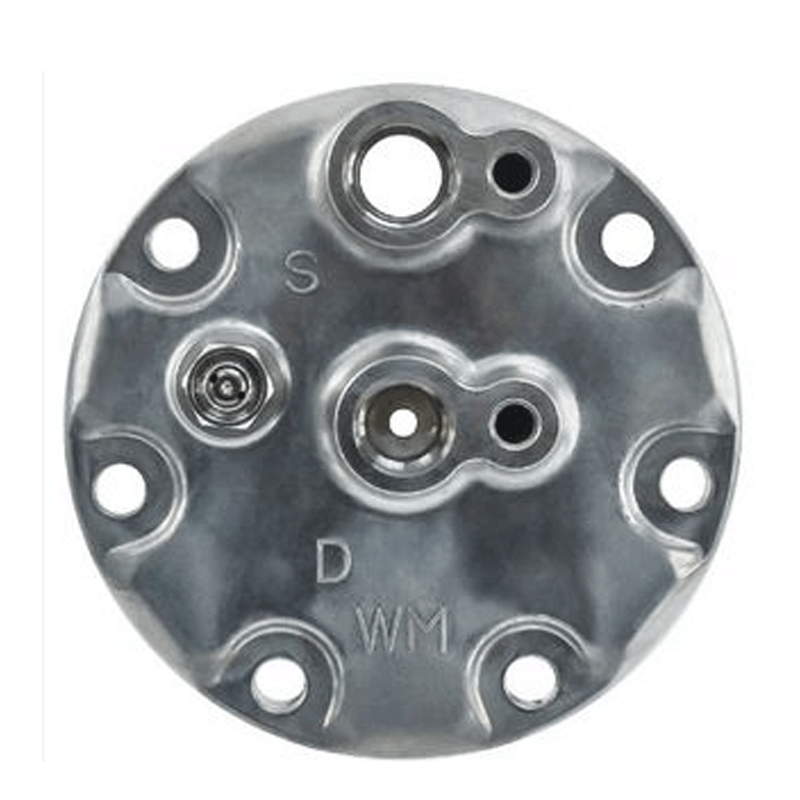

Sanden SD7H15 SD7H13 Type WM Rear Head Case Construction Kobelco

FREE SHIPPING WITHIN AUSTRALIA

Our Price: $95.00 inc.GST

Sourced from reputable manufacturers and wholesalers all over the world. Our thermal expansion valves are designed to replace the original on your vehicle. Compare images to confirm suitability prior to purchase. Alternatively you can contact our friendly customer support team for assistance.

Part Number: CCA-45444

Out of stock

Product Description

ApplicationSanden Compressor
DescriptionSanden WM Head
InletPad
OutletPad
Fitting StylePad M8-1.25 Bolt
Head TypeWM
ModelSD7H13 / SD7H15
Mounting Type6 bolt
Product NameCompressor Head
NoteWith Pressure Relief Valve Port Hole

Compare Images Against Original Unit Or Search With OEM Part Number/s To Confirm Correct Fitment And Suitability Or Contact Us For Customer Assistance

Known Applications:
CASE CONSTRUCTION CX 160
CASE CONSTRUCTION CX 210
CASE CONSTRUCTION CX 240
CASE CONSTRUCTION CX 290
CASE CONSTRUCTION CX CX130 CX160 CX180
CASE CONSTRUCTION CX CX130B
CASE CONSTRUCTION CX CX130C
CASE CONSTRUCTION CX CX130D
CASE CONSTRUCTION CX CX130D LC
CASE CONSTRUCTION CX CX160B
CASE CONSTRUCTION CX CX160C
CASE CONSTRUCTION CX CX160D LC
CASE CONSTRUCTION CX CX210 CX220 CX290 CX300
CASE CONSTRUCTION CX CX210B
CASE CONSTRUCTION CX CX210C LC
CASE CONSTRUCTION CX CX210C LR
CASE CONSTRUCTION CX CX210C NLC
CASE CONSTRUCTION CX CX210D LC
CASE CONSTRUCTION CX CX210D LC LR
CASE CONSTRUCTION CX CX210D NLC
CASE CONSTRUCTION CX CX230 CX240 CX250 CX260
CASE CONSTRUCTION CX CX250C
CASE CONSTRUCTION CX CX250D LC
CASE CONSTRUCTION CX CX250D LC LR
CASE CONSTRUCTION CX CX290
CASE CONSTRUCTION CX CX300C
CASE CONSTRUCTION CX CX300D LC
CASE CONSTRUCTION CX CX330
CASE CONSTRUCTION CX CX350C
CASE CONSTRUCTION CX CX350D LC
CASE CONSTRUCTION CX CX460
CASE CONSTRUCTION CX CX470C
CASE CONSTRUCTION CX CX490D LC
CASE CONSTRUCTION CX CX490D RTC
CASE CONSTRUCTION CX CX500D LC
CASE CONSTRUCTION CX CX500D RTC
CASE CONSTRUCTION CX CX750D RTC / RTC ME
CASE CONSTRUCTION CX CX80C
CATERPILLAR
CHALLENGER Terra GATOR 3104
CHALLENGER Terra GATOR 6103
CHALLENGER Terra GATOR 8103
CHALLENGER Terra GATOR 8104 / 8144
KOBELCO 130LX
KOBELCO 210LX
KOBELCO 330LX
KOBELCO 3400
KOBELCO 460LX
KOBELCO LINK-BELT
KOBELCO SK 200
KOBELCO SK 400
NEW HOLLAND
Compressor OEM numbers:
CASE CONSTRUCTION: 47759181, KHR3197, KHR3241
KOBELCO: TDKR151340S, TDKR151320S
LINK-BELT: KHR3241

  • Fitment
    We have Thousands of Part Numbers within our database for easy part/s identification. Simply enter your Original Part Number/s into the search bar and an instant match will often result. Images shown within our listings are for comparison purposes only. All genuine parts have the word “Genuine” in the title description. Any part branded as “Cool Car” in the product description is our own brand not OEM. Because there are often several options on some vehicles a Visual Comparison to your Original Part is Highly Recommended to avoid any possibility of purchasing the wrong part, It is the responsibility of the purchaser to determine if the listed part is correct for the intended purpose. If you are unsure, please contact our friendly support team prior to purchase.
  • Returns
    Returns are accepted for credit or refund within 30 days of purchase. Parts returned for credit will be credited the purchase price minus shipping fees. Parts returned for refund incur a 20% restocking fee. The purchaser is responsible for all return shipping costs. Fitted parts cannot be returned.

    Our address for all returns is Unit 3/6 Victory East Street Urangan QLD 4655.
    Download Return Form

  • Warranty

    All new a/c parts come with a one year manufacturers warranty from the original date of purchase.

    Incorrect compressor installation procedures can damage your new unit and void your warranty. Please familiarise yourself with the following steps prior to installation.

    (1) Remove the original compressor, drain, measure and examine the oil. If there is any moisture, sludge, discoloration ( black or grey oil ) or metal particles present, the entire a/c system must be thoroughly flushed with an approved flushing agent prior to the installation of your new unit.

    (2) The receiver/drier or desiccant bag must be replaced. Failing to do this will void your warranty.

    (3) If your vehicle is equipped with an orifice tube it should be inspected and replaced if necessary.

    (4) Parallel flow condensers cannot be thoroughly flushed, if there is any contamination it must be replaced. Tube and fin condensers can be flushed and do not need replacing.

    (5) All our compressors come pre-filled with oil, it is advised that the oil from both compressors is drained and measured. Refill the new a/c compressor with the same amount of oil that was drained from your original unit. Or refill the compressor with oil to your vehicle manufacturers specifications. Make sure you use the correct type of compressor oil. (This information will often be located on a decal under the bonnet or on the radiator support panel.)

    (6) Once fitted, rotate the compressor clutch by hand a minimum of 10 times. A concentration of oil in the compressor can cause damage during the first initial start-up.

    (7) Once the system is flushed and new parts installed, the system should be evacuated for a minimum of 45 minutes to evaporate any remaining solvent or moisture.

    (8) Recharge your a/c compressor with the correct amount of refrigerant.

    (9) Any compressor returned for warranty purposes will be assessed as the root cause for it failing prior to a warranty claim being accepted. The buyer is responsible for the return shipping costs back to us.

    In the event you need to make a warranty claim, please attach a copy of your receipt from your licensed workshop clearly showing a new receiver/ drier or desiccant bag had been fitted to your vehicle at the time of compressor installation. If installation was not carried out by a licensed workshop you are required to provide us a copy of a verifiable receipt clearly showing a new receiver/ drier or desiccant bag suited to your vehicle had been purchased.

    We accept no liability for any consequential loss, damage, or any other associated costs. By purchasing from us you agree to these terms.
