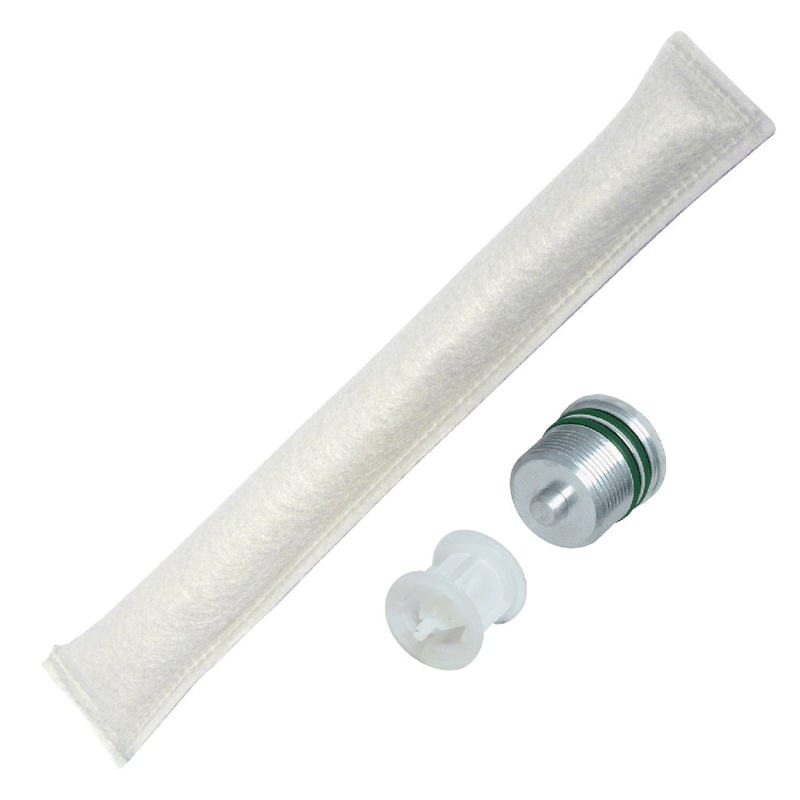

Product Description
Metal Cap | 25.8mm |
Height | 230mm |
Receiver Drier Type | Desiccant Bag |
Suits | Toyota Corolla 1.8L 2.0L 2006-2018 |
Search our extensive range of online vehicle a/c parts. Simply start typing.
Choose the Year, Make and Model below and we'll show you the related parts.
Our Price: $82.00 inc.GST
Sourced from reputable manufacturers and wholesalers all over the world. Our receiver/driers replace the original on your vehicle. The receiver/drier plays a critical role allowing your A/C System to function at its peak performance. The receiver/drier should be replaced every five years or when the A/C system is overhauled or the compressor is replaced.
Part Number: CCA-45093
In stock
Metal Cap | 25.8mm |
Height | 230mm |
Receiver Drier Type | Desiccant Bag |
Suits | Toyota Corolla 1.8L 2.0L 2006-2018 |
Weight | 0.32 kg |
---|
Year | Make | Model | Engine |
---|---|---|---|
Year | Make | Model | Engine |
2006 - 2018 | Toyota | Corolla |
TOYOTA COROLLA ZRE152 1.8L 2ZR-FE DOHC 16v Petrol 4cyl 100kW Hatchback FWD 10/2006-12/2013
TOYOTA COROLLA ZRE152 1.8L 2ZR-FE DOHC 16v Petrol 4cyl 100kW Sedan FWD 10/2006-07/2014
TOYOTA COROLLA ZRE153 VVTi 2.0L 3ZR-FE Euro 4 DOHC 16v Petrol 4cyl 102kW Sedan FWD 08/2010-10/2012
TOYOTA COROLLA ZRE172 VVTi 1.8L 2ZR-FE DOHC 16v Petrol 4cyl 103kW Sedan FWD 02/2014-08/2019
TOYOTA COROLLA ZRE182R 1.8L 2ZR-FE DOHC 16v Petrol 4cyl 103kW Hatchback FWD 10/2012-12/2018
TOYOTA COROLLA ZWE186R Hybrid 1.8L 2ZR-FXE DOHC 16v Petrol/Electric Hybrid 4cyl 100kW Hatchback FWD 10/2012-12/2018
TOYOTA COROLLA ZZE122 1.8L 1ZZ-FE DOHC 16v Petrol 4cyl 100kW Sedan FWD 12/2001-05/2007
TOYOTA COROLLA ZZE122 1.8L 1ZZ-FE DOHC 16v Petrol 4cyl 100kW Wagon FWD 12/2001-05/2007
TOYOTA COROLLA ZZE122R 1.8L 1ZZ-FE DOHC 16v Petrol 4cyl 93kW Hatchback FWD 10/2005-12/2007
TOYOTA COROLLA ZZE122R 1.8L 1ZZ-FE DOHC 16v Petrol 4cyl 93kW Wagon FWD 10/2005-12/2007
TOYOTA COROLLA ZZE122R VVTi 1.8L 1ZZ-FE DOHC 16v Petrol 4cyl 100kW Hatchback FWD 12/2001-05/2007
TOYOTA COROLLA ZZE123 VVTL-i TS 1.8L 2ZZ-GE DOHC 16v Petrol 4cyl 141kW Hatchback FWD 05/2003-05/2007
Our address for all returns is Unit 3/6 Victory East Street Urangan QLD 4655.
Download Return Form
All new a/c parts come with a one year manufacturers warranty from the original date of purchase.
Incorrect compressor installation procedures can damage your new unit and void your warranty. Please familiarise yourself with the following steps prior to installation.
(1) Remove the original compressor, drain, measure and examine the oil. If there is any moisture, sludge, discoloration ( black or grey oil ) or metal particles present, the entire a/c system must be thoroughly flushed with an approved flushing agent prior to the installation of your new unit.
(2) The receiver/drier or desiccant bag must be replaced. Failing to do this will void your warranty.
(3) If your vehicle is equipped with an orifice tube it should be inspected and replaced if necessary.
(4) Parallel flow condensers cannot be thoroughly flushed, if there is any contamination it must be replaced. Tube and fin condensers can be flushed and do not need replacing.
(5) All our compressors come pre-filled with oil, it is advised that the oil from both compressors is drained and measured. Refill the new a/c compressor with the same amount of oil that was drained from your original unit. Or refill the compressor with oil to your vehicle manufacturers specifications. Make sure you use the correct type of compressor oil. (This information will often be located on a decal under the bonnet or on the radiator support panel.)
(6) Once fitted, rotate the compressor clutch by hand a minimum of 10 times. A concentration of oil in the compressor can cause damage during the first initial start-up.
(7) Once the system is flushed and new parts installed, the system should be evacuated for a minimum of 45 minutes to evaporate any remaining solvent or moisture.
(8) Recharge your a/c compressor with the correct amount of refrigerant.
(9) Any compressor returned for warranty purposes will be assessed as the root cause for it failing prior to a warranty claim being accepted. The buyer is responsible for the return shipping costs back to us.
In the event you need to make a warranty claim, please attach a copy of your receipt from your licensed workshop clearly showing a new receiver/ drier or desiccant bag had been fitted to your vehicle at the time of compressor installation. If installation was not carried out by a licensed workshop you are required to provide us a copy of a verifiable receipt clearly showing a new receiver/ drier or desiccant bag suited to your vehicle had been purchased.
We accept no liability for any consequential loss, damage, or any other associated costs. By purchasing from us you agree to these terms.
